W H A T ’S O N T H E M O D U L E ?
JTAG adapter assembly
..................................................................................
JTAG adapter assembly
Use the JTAG adapter assembly, shipped with the ConnectCore 9C/Wi-9C Jump Start
Kit, to attach your debugger to the module. The JTAG adapter assembly consists of
the Digi JTAG Link USB debugger with a ribbon cable attached and the JTAG adapter
with a ribbon cable attached. The Jump Start Kit also includes a USB cable.
The two connectors on the JTAG adapter are keyed , as is the JTAG connector
header (P2) on the module. Keyed connectors eliminate cable attachment errors by
ensuring that there is only one way to mate the connectors.
JTAG adapter
The JTAG adapter has two 20-pin connectors, P1 and P2.
?
?
?
P1 is a keyed male connector into which you attach the debugger’s ribbon
cable.
P2 is a keyed male connector into which you attach the ribbon cable that plugs
into the module.
J1 is a jumper that determines the mode in which the module operates: debug
or boundary scan. Depending on the JTAG adaptor you are using, J1 has either
two pins or three pins.

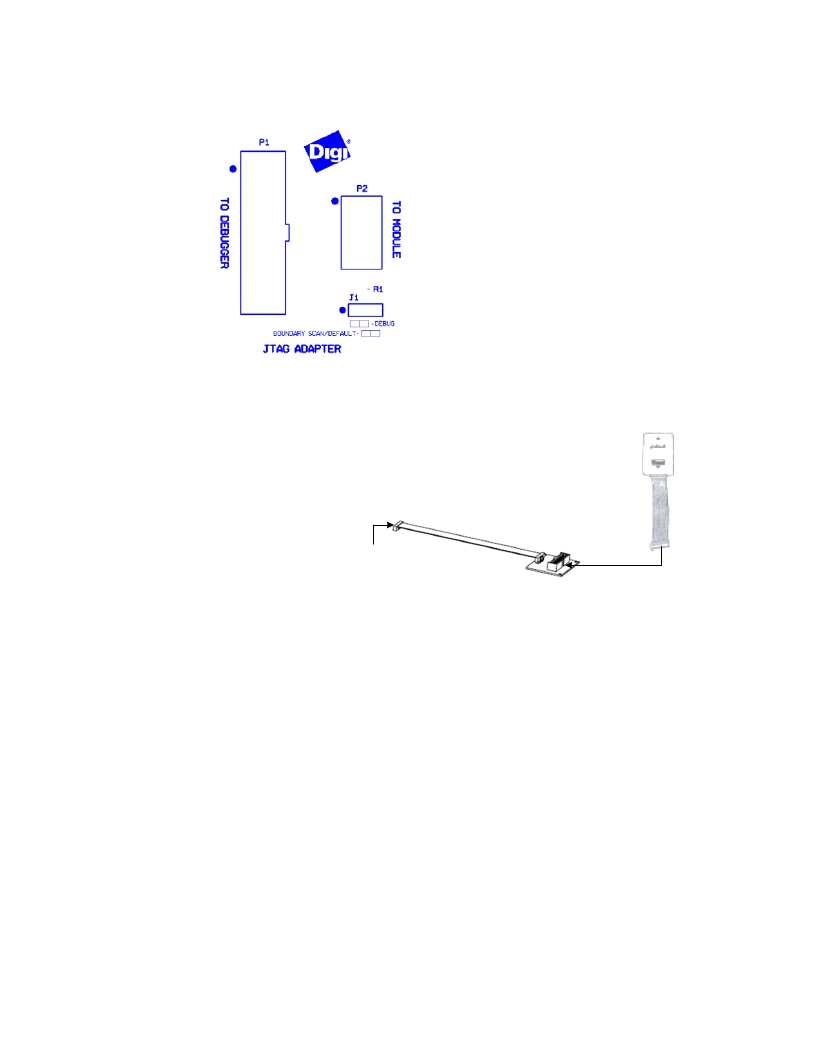

This drawing shows the JTAG adapter with a
2-pin J1 header.
For debug mode — Do not plug a jumper onto J1.
For boundary scan mode — Plug a jumper onto
J1.
For the 3-pin version having pins 1 and 2
jumpered puts you into debug mode, this again is
the 'default' mode. Having pins 2 and 3 jumpered
puts you into a boundry scan mode.
16
ConnectCore 9C/Wi -9C Hardware Reference, Rev D 05/2010
